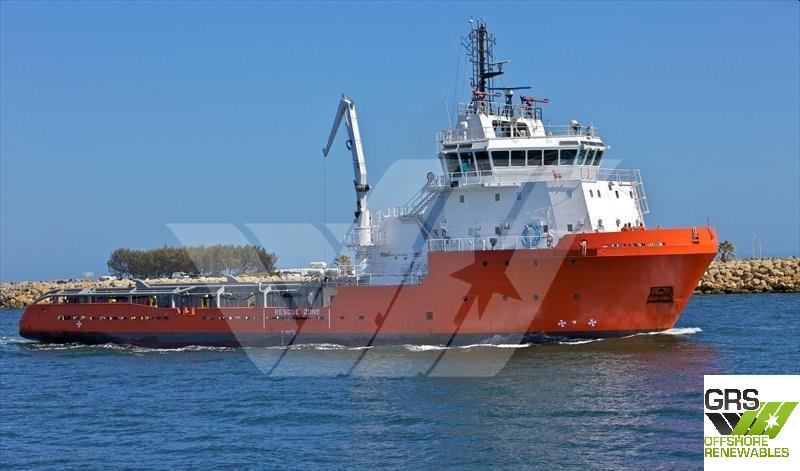

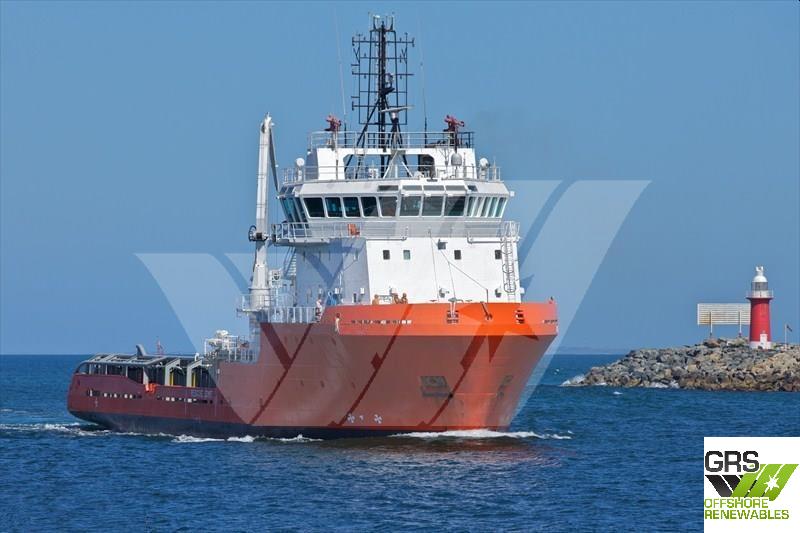

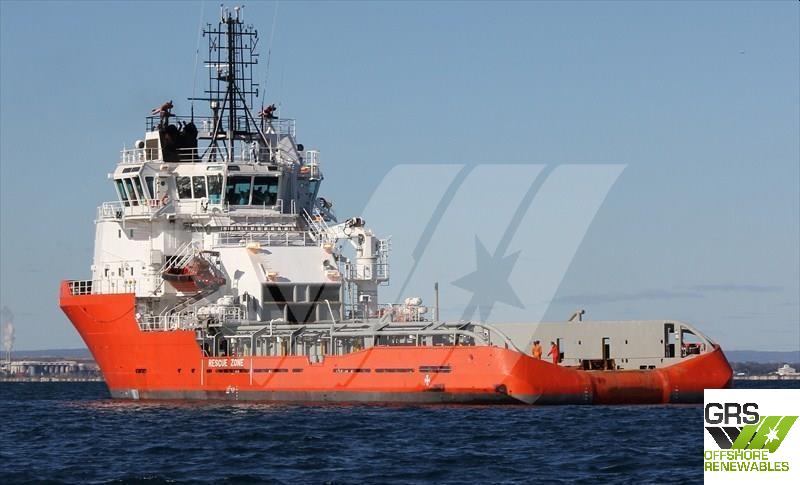

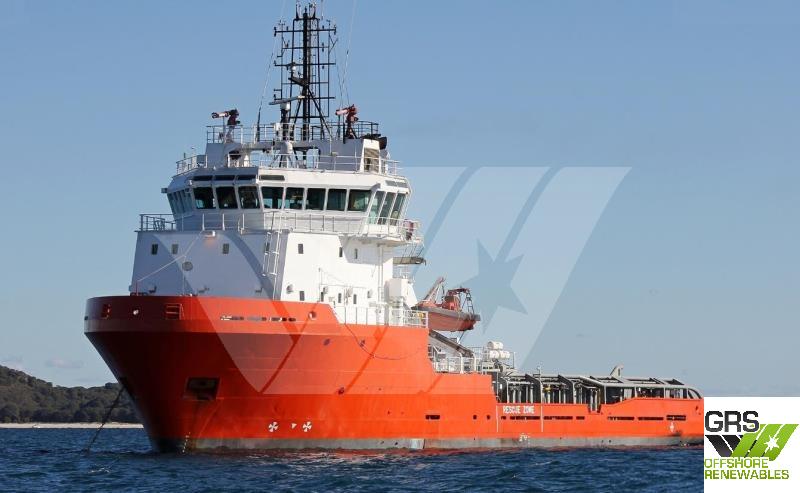

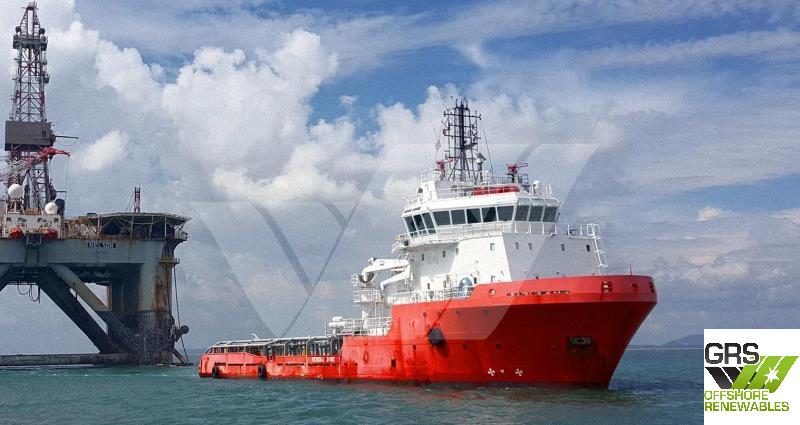

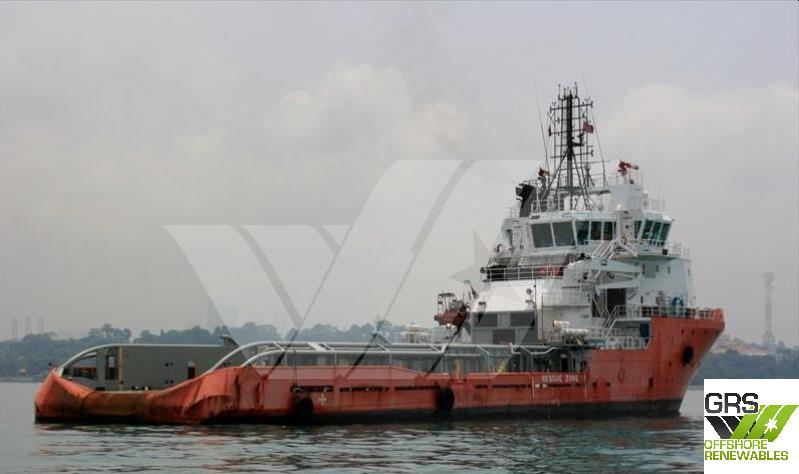

Description

LOA 68,95 m
Beam 15,5 m
Draft 6 m
Bollard Pull : 132 tons

Dynamic Positioning of class : DP 2
Free Deck area about 470m²
Fire Fighting System installed
1 Crane / Gear installed with a max lifting capacity of 5 tons

Built in year 2003
Design is : UT 710
Class : American Bureau of Shipping
Flag : Saint Vincent & The Grenadines
Gross Tonnage of 2.327 and Nett Tonnage of 751

Deadweight : 2.351 metric tonnes

Total 30 berths
10 cabins with 1 berth
4 cabins with 2 berths
3 cabins with 4 berths

Speed : 12 knots
Engines : 2 x Bergens / Rolls-Royce Marine AS BRM-9, 7.944 kw, 750 rpm, Propellers 1 Controllable Pitch (Port Side) + 1 Controllable Pitch (Starboard)
Auxiliaries Engines : 2 Caterpillar 320 kw, Bowthruster + Sternthruster (2 Bow Thwart. CP thruster 590kw + 1 Stern Thwart. CP thruster 590kw)

Specifications

Engine(s)

2 x 7.944 kw, 750 rpm, Bergens / Rolls-Royce Marine AS BRM-9,
Propellers: 1 Controllable Pitch (Port Side) + 1 Controllable Pitch (Starboard)
